BS5163 Flanged Industrial Gate Valve

BS5163 Non-rising Metal Seated Industrial Gate Valve

Specifications:
1. Body:             GGG40/50
2. Disc:              GGG40/50
3. Seat:              Brass/Bronze
4. Stem:             2cr13
5. Bonnet:          GGG40/50
6. Hand wheel:  GGG40/50

Application:
1.Face to face is according to BS5163,BS5150

2.Flange drilled is according to BS table E or D/BS4504/EN1092

Working Range:

1.Potable water /drinking water

2.Water/wastewater treatment

Function:

Fully open and close and it is opened for long time usually ,then some day,we need close it to maintain pipe or check status ,this moment we need this still work and open it easily like before .Poor quality one might be dead to not working or it is weak to destroy when to open, good one will overcome these problems aboved.It is often amounted under the ground,and work with other types of valves like butterfly valve,Non-return valve and stainers.

Test:
Working pressure:     PN10      /     PN16
Shell pressure:          1.5MPa  /      2.4MPa
Seat pressure:           1.1MPa /       1.76MPa

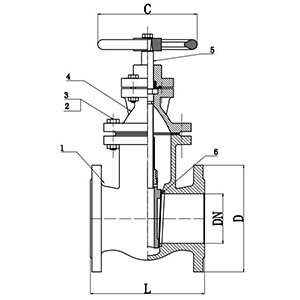

Dimensions:

If you have specified requirements or any questions,welcome to ask for us.
