ANSI Cast Iron Metal Seated Sluice Valve

Time:2020-12-18 14:06:54 Hits:

ANSI Cast Iron Metal Seated Sluice Valve


Specifications:
1. Body:             GGG40/50
2. Disc:              GGG40/50
3. Seat:              Brass/Bronze
4. Stem:             2cr13
5. Bonnet:          GGG40/50
6. Hand wheel:  GGG40/50


Application:
1.Face to face is according to ANSI B16.10

2.Flange drilled is according to ANSI B16.1/16.5

3.Class 125: Flat Face flange

4.Class 150: Raised face flange


Working Range:

1.Potable water /drinking water

2.Water/wastewater treatment



Function:

Fully open and close and it is opened for long time usually ,then some day,we need close it to maintain pipe or check status ,this moment we need this still work and open it easily like before .Poor quality one might be dead to not working or it is weak to destroy when to open, good one will overcome these problems aboved.It is often amounted under the ground,and work with other types of valves like butterfly valve,Non-return valve and stainers.


Test:
Working pressure:     125PSI      /     150PSI
Shell pressure:                    1.5MPa
Seat pressure:                     1.1MPa

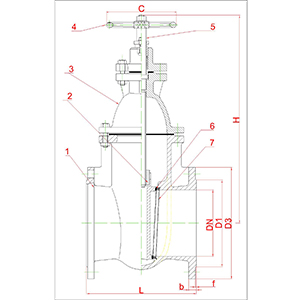

Dimensions:

DN 2" 2.5" 3" 4" 5" 6" 8" 10" 12"
L 178mm 190mm 203mm 229mm 254mm 267mm 292mm 330mm 356mm
H 305mm 343mm 391mm 452mm 533mm 602mm 813mm 935mm 1083mm
C 178mm 178mm 203mm 254mm 254mm 305mm 356mm 405mm 457mm
D3 152mm 178mm 191mm 229mm 254mm 279mm 343mm 406mm 483mm

We also offer big size from 2" to 48" for this valve.

If you have specified requirements or any questions,welcome to ask for us.
